🤖 Student Robotics Helper

How to Use Arduino & Kit

  1. Install Arduino IDE from the official website.
  2. Connect Arduino board to your computer via USB cable.
  3. Build your circuit using the breadboard and components.
  4. Paste the example code into the IDE.
  5. Click Upload to program your board.
Arduino Uno

Figure 1: Arduino Uno board (key areas labeled)

Labeled Robotics Kit Parts

Arduino Starter Kit

Figure 2: Common kit components (LEDs, resistors, button, buzzer, sensors)

Examples

1. Blink LED

Blink LED wiring
void setup() {
  pinMode(13, OUTPUT);
}

void loop() {
  digitalWrite(13, HIGH);
  delay(1000);
  digitalWrite(13, LOW);
  delay(1000);
}

2. Button-controlled Buzzer

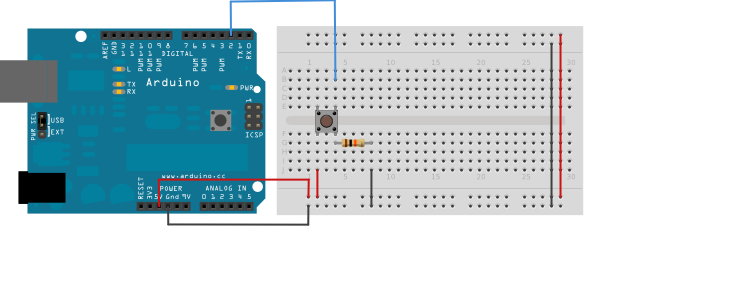

Button wiring
int buttonPin = 2;
int buzzerPin = 8;

void setup() {
  pinMode(buttonPin, INPUT);
  pinMode(buzzerPin, OUTPUT);
}

void loop() {
  if(digitalRead(buttonPin) == HIGH) {
    digitalWrite(buzzerPin, HIGH);
  } else {
    digitalWrite(buzzerPin, LOW);
  }
}

3. Ultrasonic Distance Sensor + Servo

Ultrasonic wiring
#include

Servo myservo;
int trigPin = 9;
int echoPin = 10;

void setup() {
  pinMode(trigPin, OUTPUT);
  pinMode(echoPin, INPUT);
  myservo.attach(6);
  Serial.begin(9600);
}

void loop() {
  digitalWrite(trigPin, LOW);
  delayMicroseconds(2);
  digitalWrite(trigPin, HIGH);
  delayMicroseconds(10);
  digitalWrite(trigPin, LOW);
  long duration = pulseIn(echoPin, HIGH);
  int distance = duration * 0.034 / 2;

  Serial.println(distance);
  int pos = map(distance, 0, 200, 0, 180);
  myservo.write(pos);
  delay(500);
}
